GMC ELECTRICAL HIGH QUALITY TEST STATIONS
 FOR ALL YOUR NEEDS




********

International Orders Do Not Include Freight Charges

 ********

GMC ELECTRICAL INC. will be contacting you in regards to Freight Charges and Carrier

after you have placed your order.

Any questions please call: 877-684-1949





 GMC ELECTRICAL, INC. GMC STAPERM Cathodic Protection Test Station

GMC ELECTRICAL, INC. GMC STAPERM Cathodic Protection Test Station feature list

Standard Pricing Test Station
Any Standard Color - Red, Blue, Green, Yellow, Orange, White, Black
Standard (5) Terminal List Ptice: $
W/Potential Meter and Switch List Price: $

GMC ELECTRICAL, INC. GMC STAPERM Probe Coupon Test Point Integrated Steel Coupon

GMC ELECTRICAL, INC. GMC STAPERM Probe

Standard Pricing
Any Standard Color - Red, Blue, Green, Yellow, Orange, White, Black
Complete Standard (5) Terminal Single Coupon List Ptice: $
Complete W/Potential Meter and Switch Single Coupon List Price: $
Contact Us For Pricing on Double Coupon Units

GMC STAPERM
STREET TEST STATIONS


GMC ELECTRICAL, INC. GMC STAPERM Street Test Stations - Cathodic Protection Test Stations



GMC STAPERM
Cathodic Protection Test Stations

The STAPERM cathodic protection test station is a non-conductive, high capacity, flush mounted, below ground terminal that is used to conveniently monitor electrical currents and potentials associated with all types of underground piping, cables, and other metallic structures. Designed especially for use in troublesome locations where water, street traffic and other adverse conditions exist, the box will maintain its structural integrity during hard usage and is suitablefor installation in asphalt. Made in the United States, it is readily available from GMC distributors worldwide.



FEATURES:



CP Test Station
Lid, Terminal Board and Housing made from Makroblend® polycarbonate. One of the toughest plastics in the world. Not damaged by chemicals common to street usage.

Support Post
The pipe PE (standard) polyethylene blend has over 20 years of proven durability. The pipe PC (optional) polycarbonate is available for the toughest applications. Standard length 1 foot - available to 40 feet with Telescoping Extender.

Colors
Red, Orange, Yellow, Green, Blue, White, and Black are standard on box and pipe. Any color is available as an option.

GMC ELECTRICAL, INC. GMC CP Test Station Diagram

Hardware
Standard nickel plated brass or optional stainless steel for guaranteed long service life. Up to 9 terminals accessible from both sides of the board.

Accessories
All STAPERM terminal boards can accommodate GMC shunts, Slide Resistors, Rheostats, GMC Meters (Volt or Amp), Burndy connectors, bonding/shorting straps, Banana Jacks, locking devices and lightning arrestors.

Dimensions
7-3/4" Diameter x 5" height fits 6" schedule 40 pipe.


Standard Pricing
Any Standard Color - Red, Blue, Green, Yellow, Orange, White, Black
Standard (5) Terminal List Ptice: $


GMC LITTLE STAPERM TEST STATIONS

GMC ELECTRICAL, INC GMC Little Staperm Cathodic Protection Test Station





Little STAPERM Cathodic Protection Test Station

The Little Staperm cathodic protection test station is a 2 or 3 lead version of the larger Staperm. Its rugged, maintenance free construction has served pipeline companies worldwide. Manufactured in the United States, the Little Staperm is available from GMC distributors worldwide.



 CP Test Station
Cap, Terminal Board and Collect Nut made from Makrolon® polycarbonate. One of the toughest plastics in the world.

Hardware
Standard nickel plated brass or optional stainless steel for guaranteed long service life. Up to 3 terminals accessible from both sides of the board.

Accessories
All Little Staperm terminal boards can accommodate shunts, Burndy connectors,  bonding/shorting straps, Banana Jacks, locking devices, lightning arrestors and flange mounting brackets.

Colors
Red, Orange, Yellow, Green, Blue, White and Black are standard on Little Staperm and pipe. Any color is available as an option.

Support Post
GMC pipe PE (standard) polyethylene has over 20 years of proven durability. GMC pipe PC (optional) polycarbonate is available for the toughest applications. Standard length 6 feet, available to 40 feet.

Sizes
Available in models to fit 3/4" and 1-1/4" pipe

Anchor
GMC pipe PE is easily installed and prevents pullout.

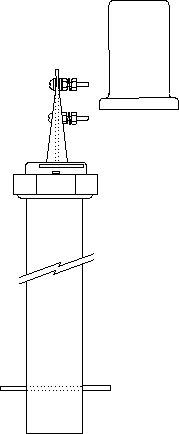

GMC ELECTRICAL, INC. Little STAPERM Cathodic Protection Test Station schematic
